Enable Single Sign-On in VertexGraph

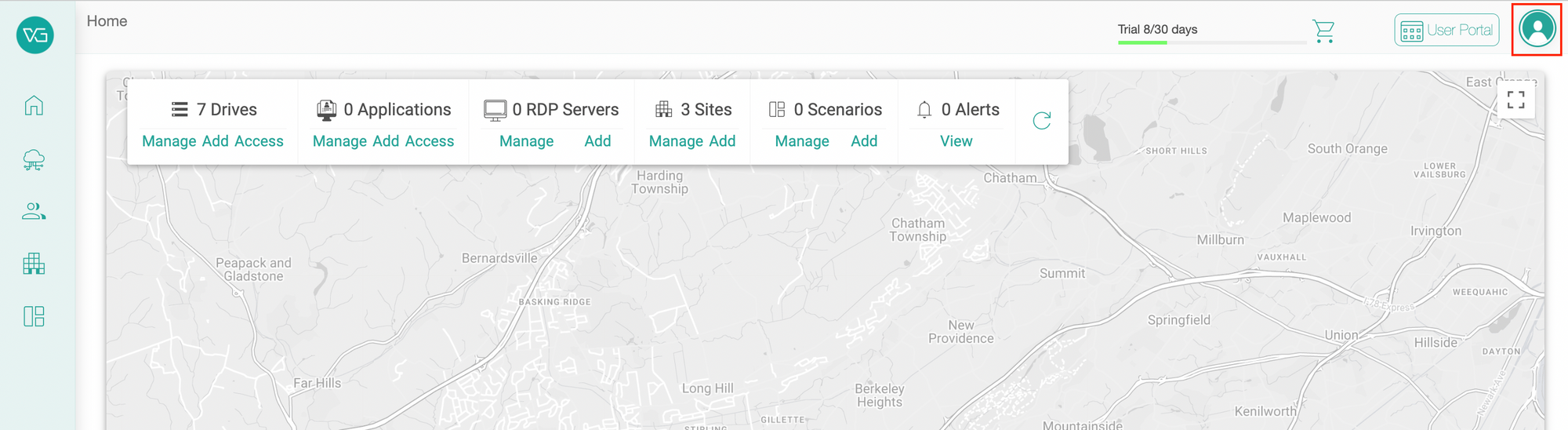

1. In the admin dashboard, click on the avatar on the top right

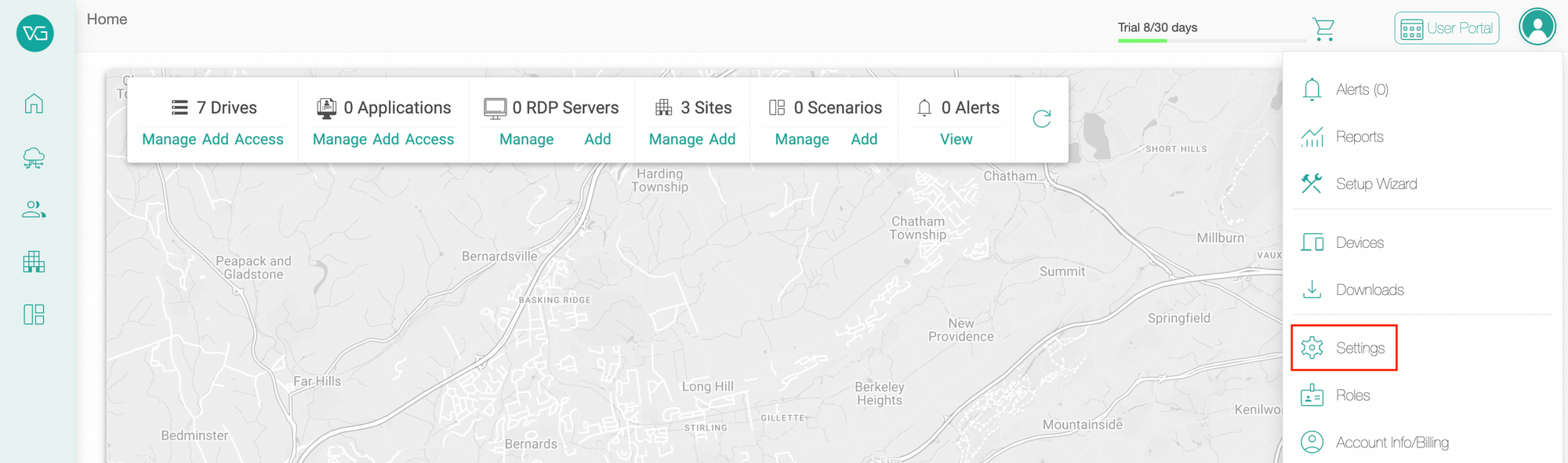

2. In the dropdown menu that gets opened up, select “Settings”

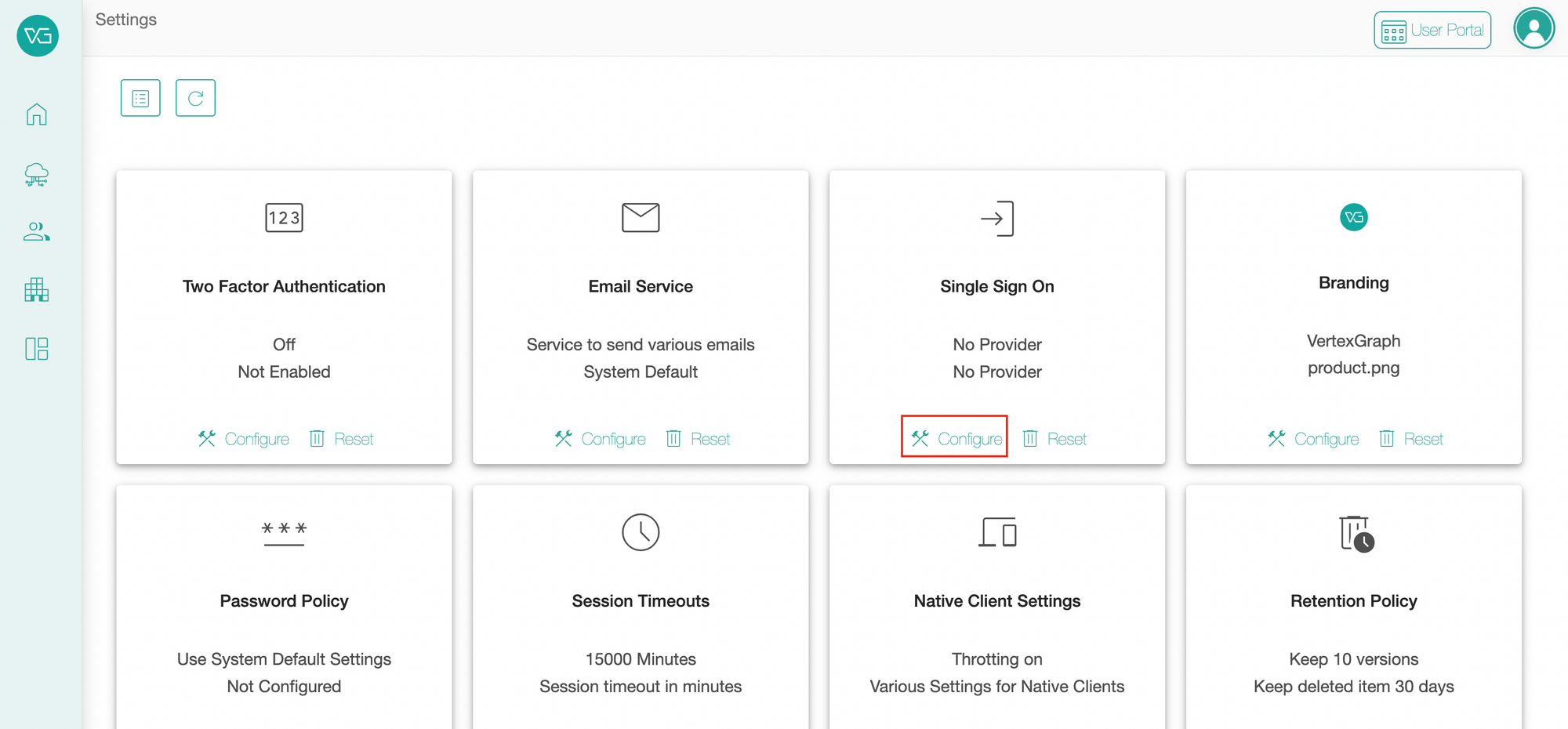

3. Click on “Configure” under “Single Sign On”

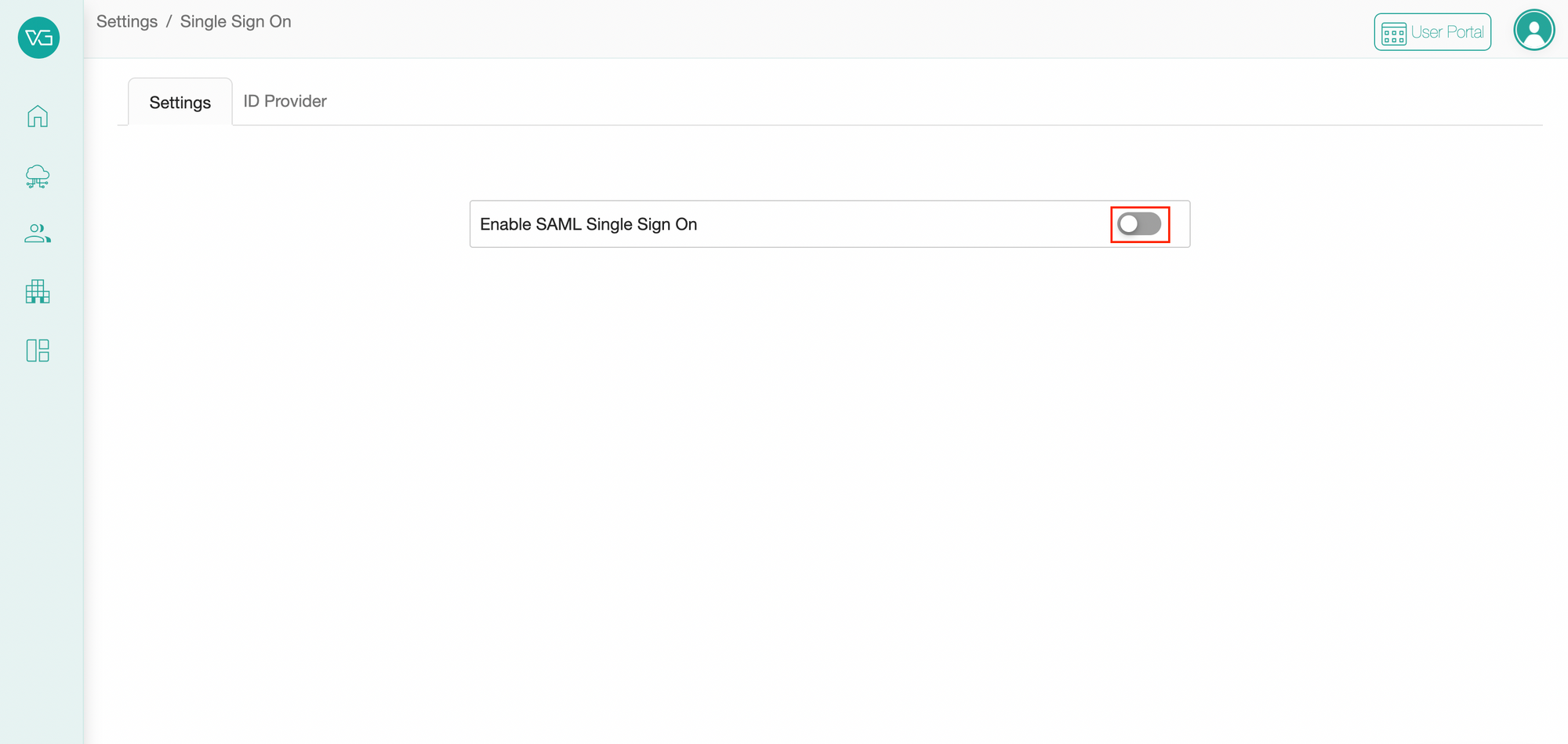

4. Turn on the toggle for “Enable SAML for Single Sign On”
Create an application in Azure AD

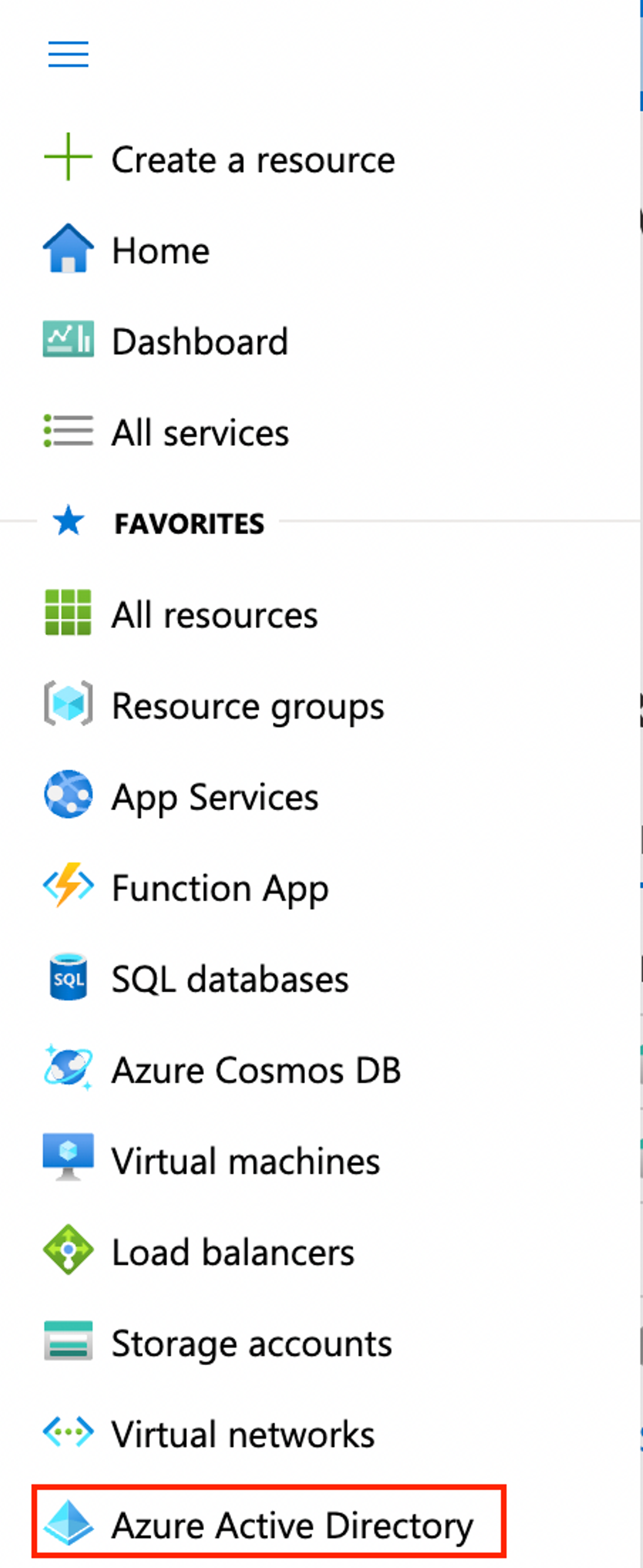

1. Go to https://portal.azure.com, select the “Hamburger” icon on the top left, and then choose “Azure Active Directory”

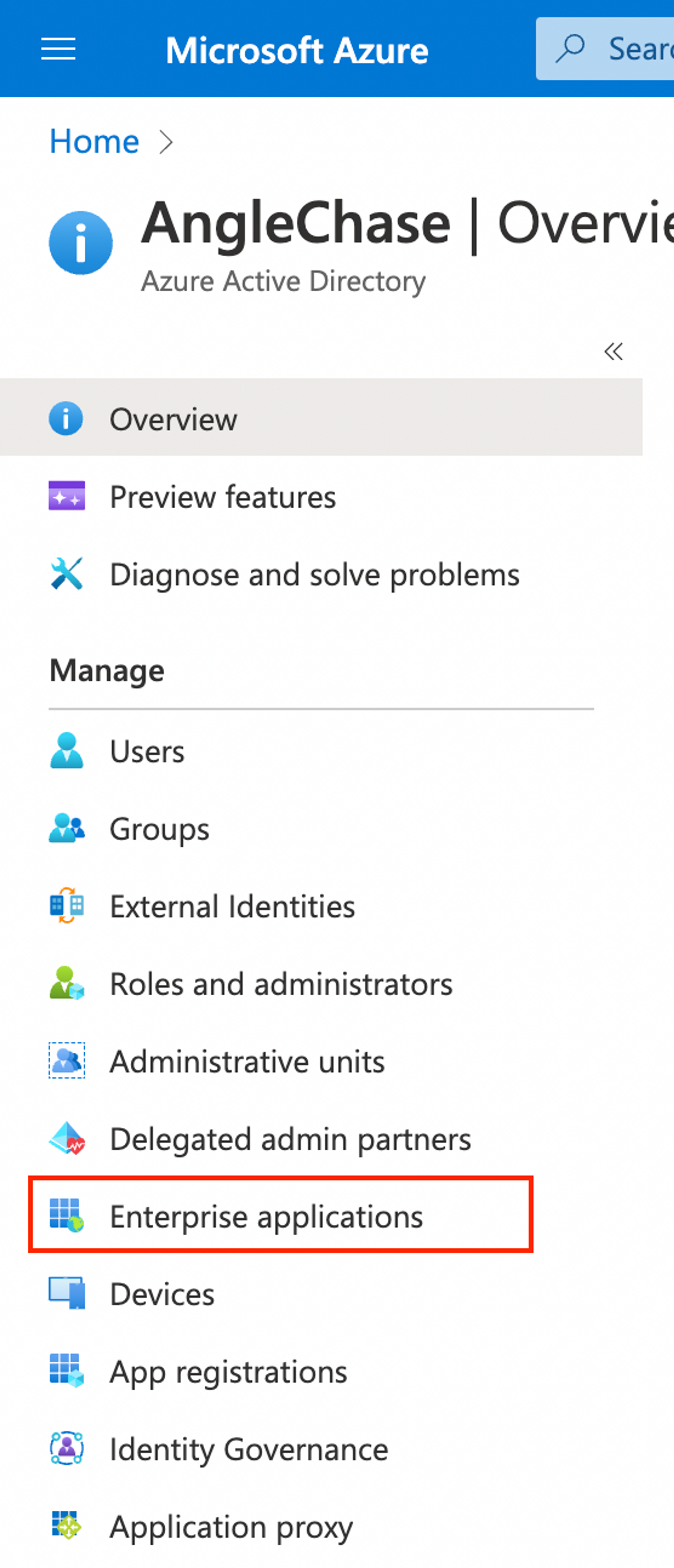

2. Choose “Enterprise Applications”

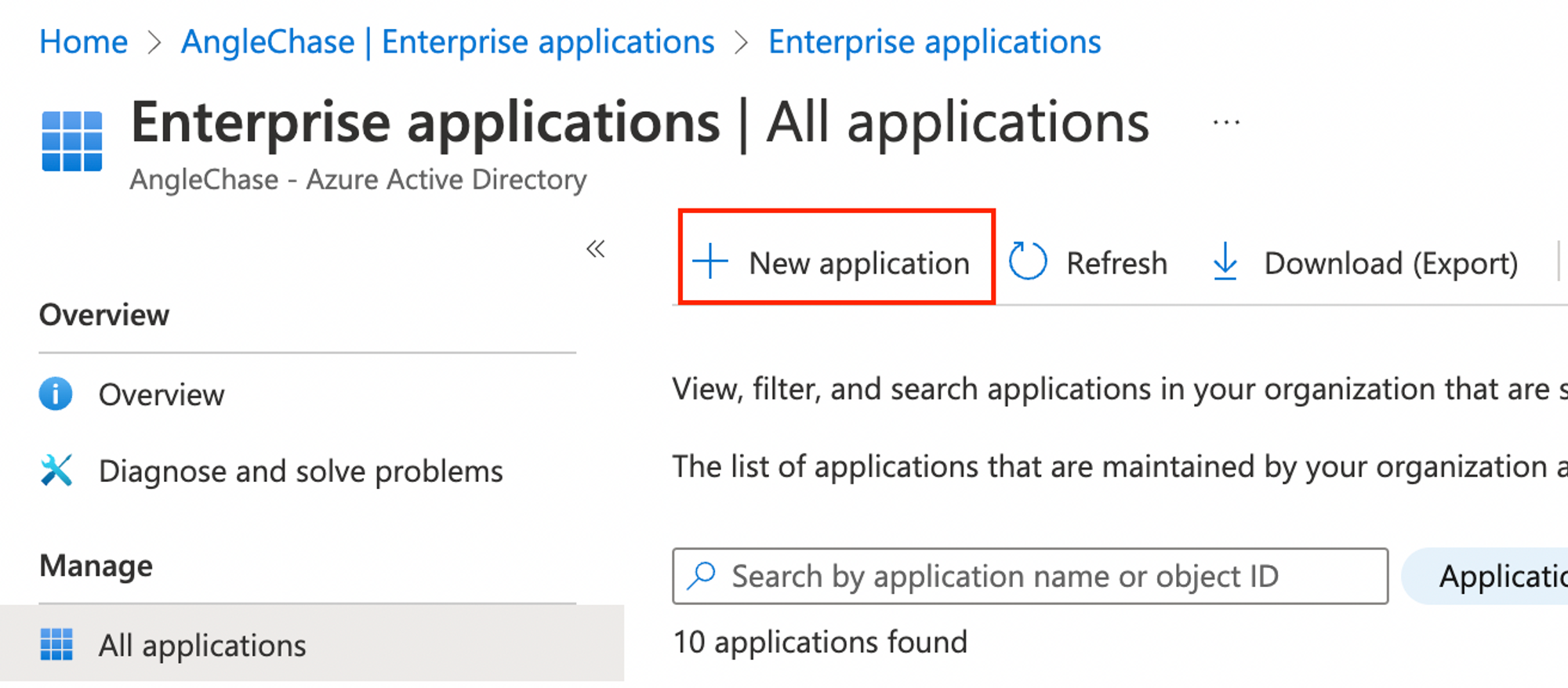

3. Click on “New application”

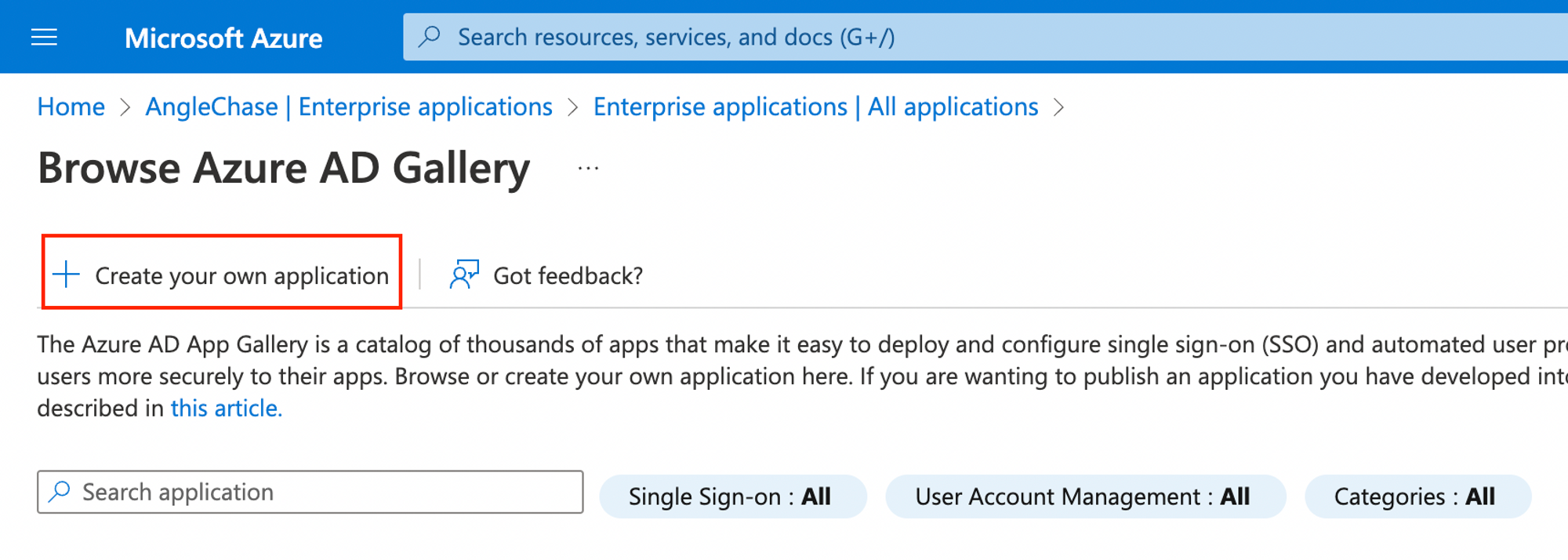

4. Click on “Create your own application”

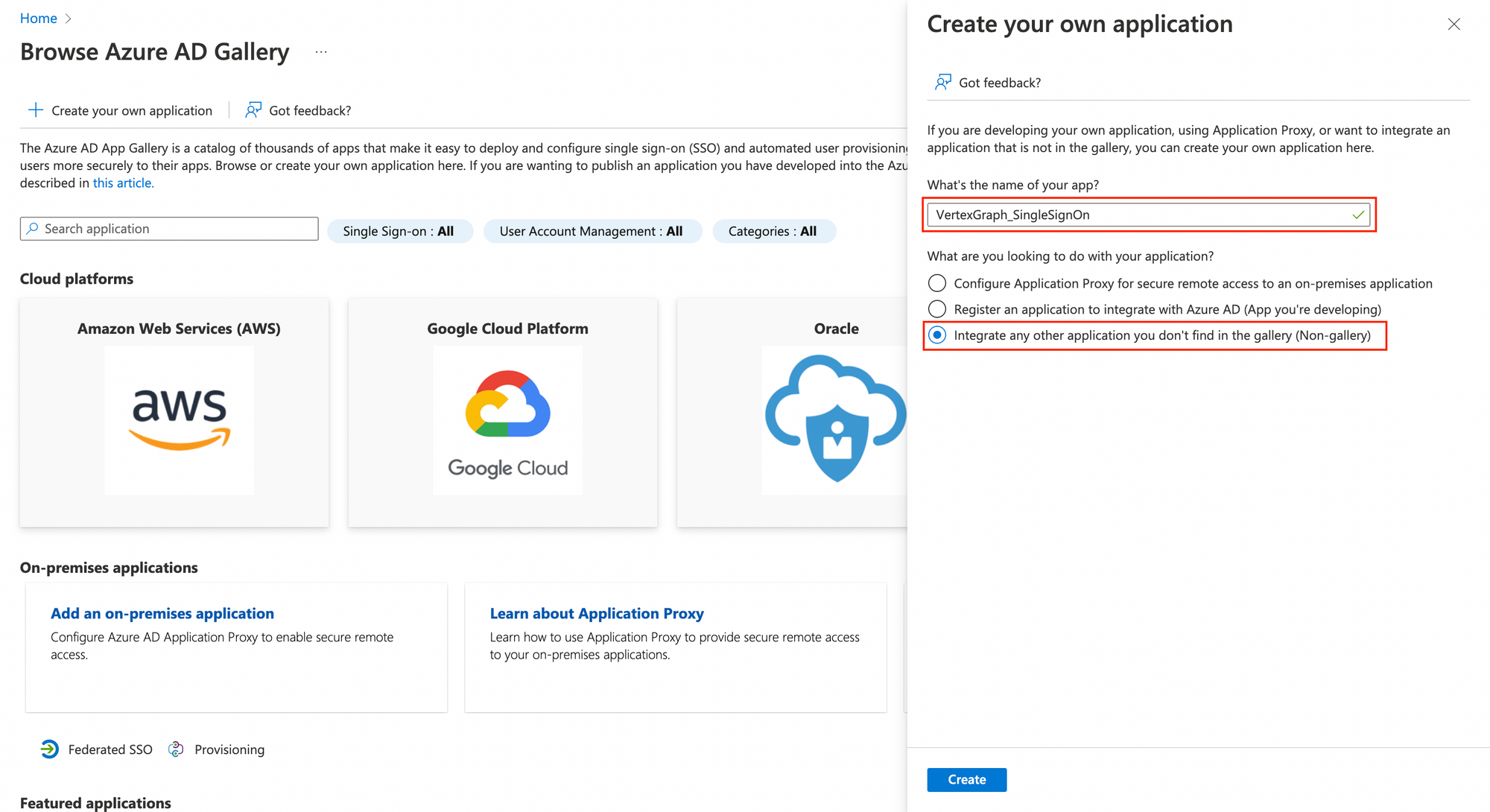

5. Enter a name for the application, e.g., VertexGraph_SingleSignOn, and select “Integrate any other application you don't find in the gallery (Non-gallery)”
6. Click “Create” and wait for the application to be created

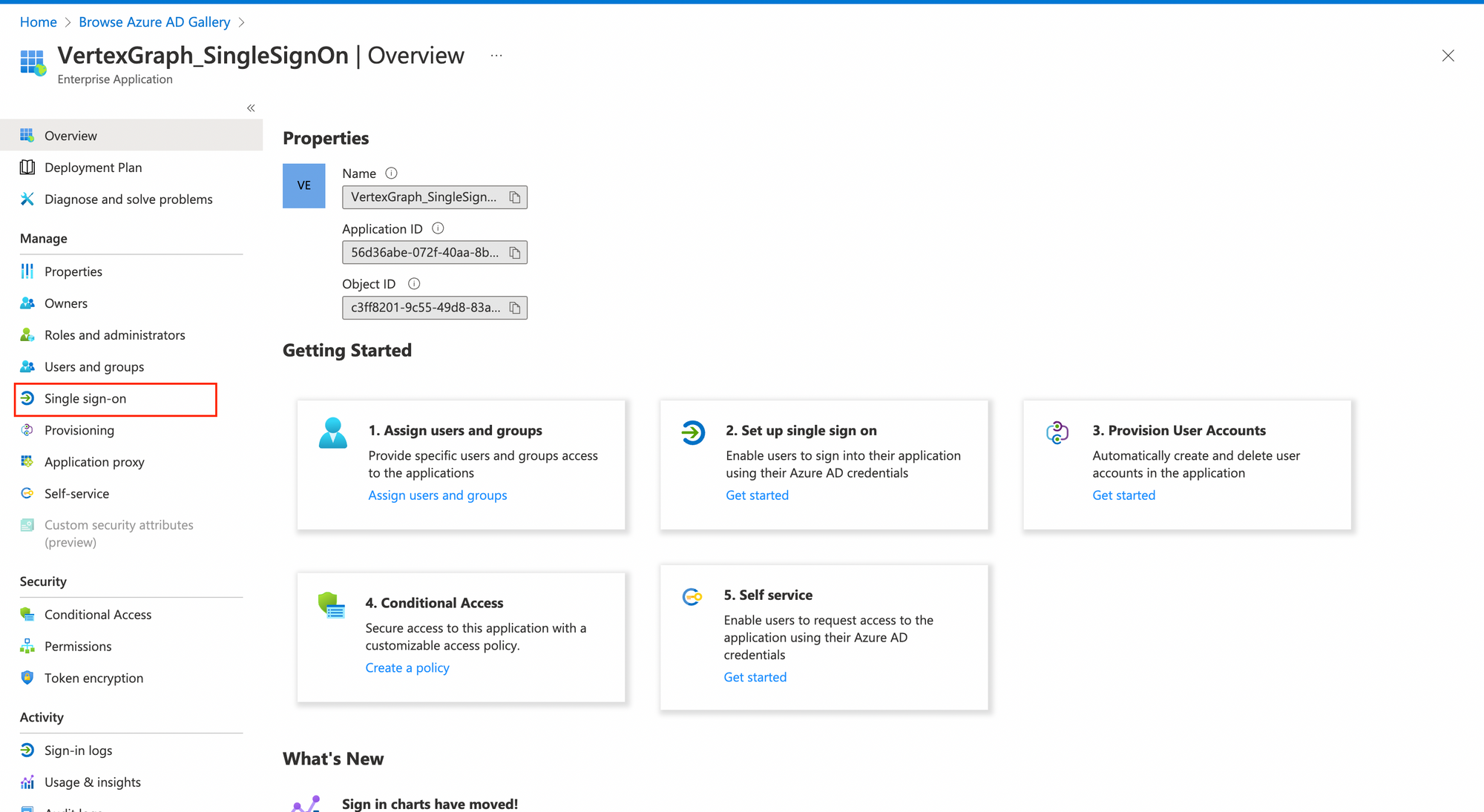

7. In the newly created application, choose the “Single sign-on” on the left column

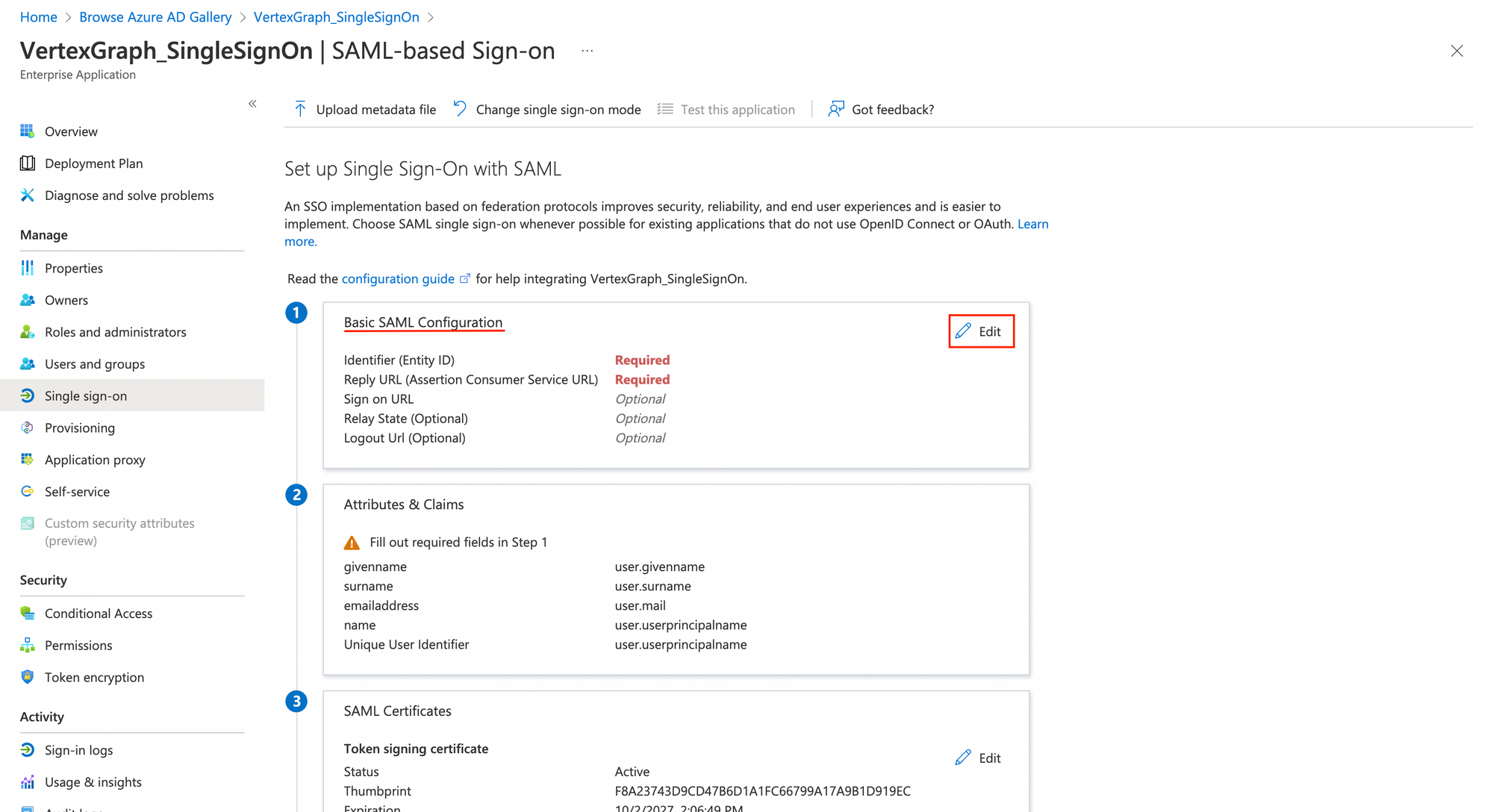

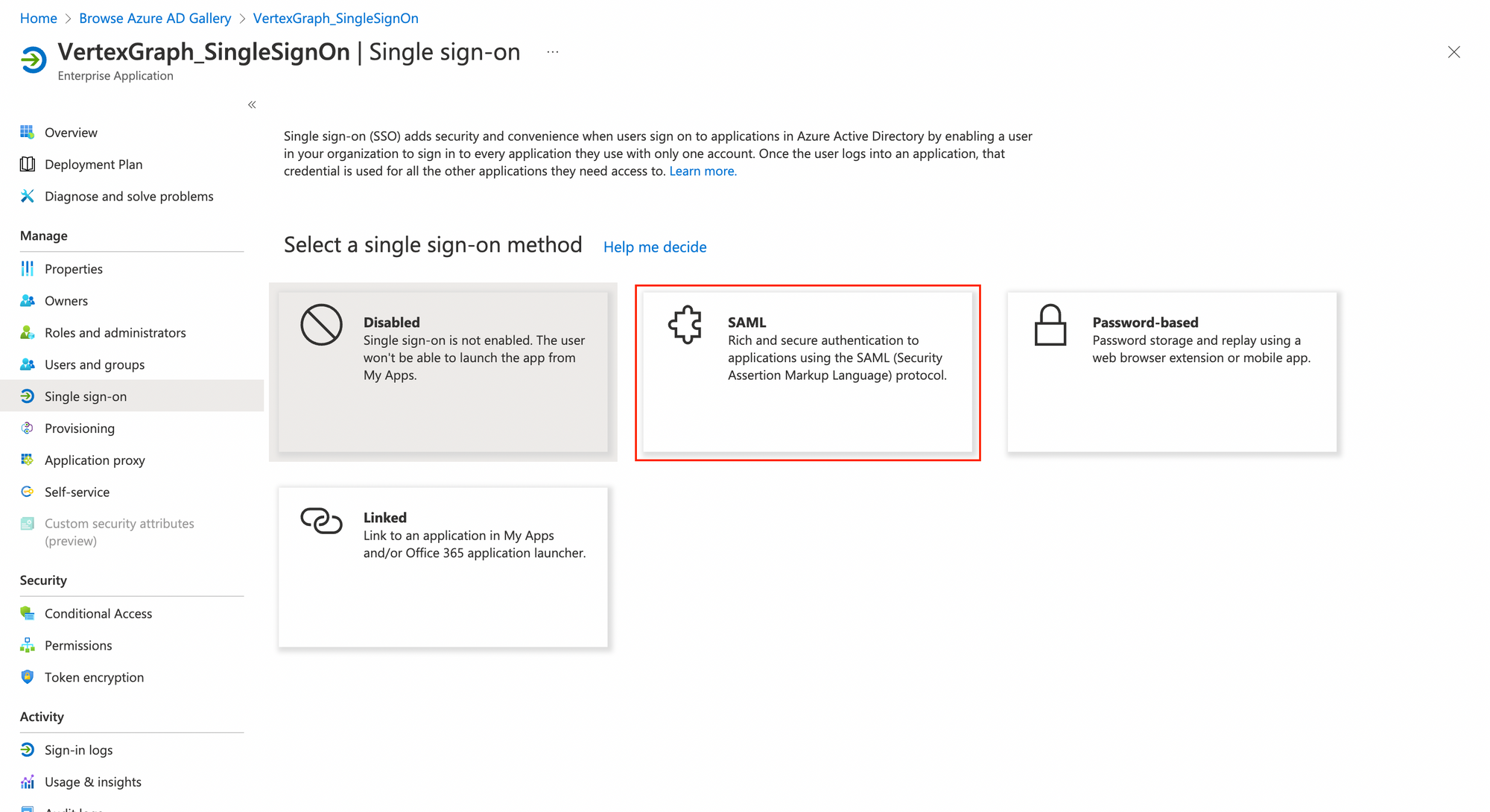

8. Select “SAML”9. Click “Edit” in the “Basic SAML Configuration” card

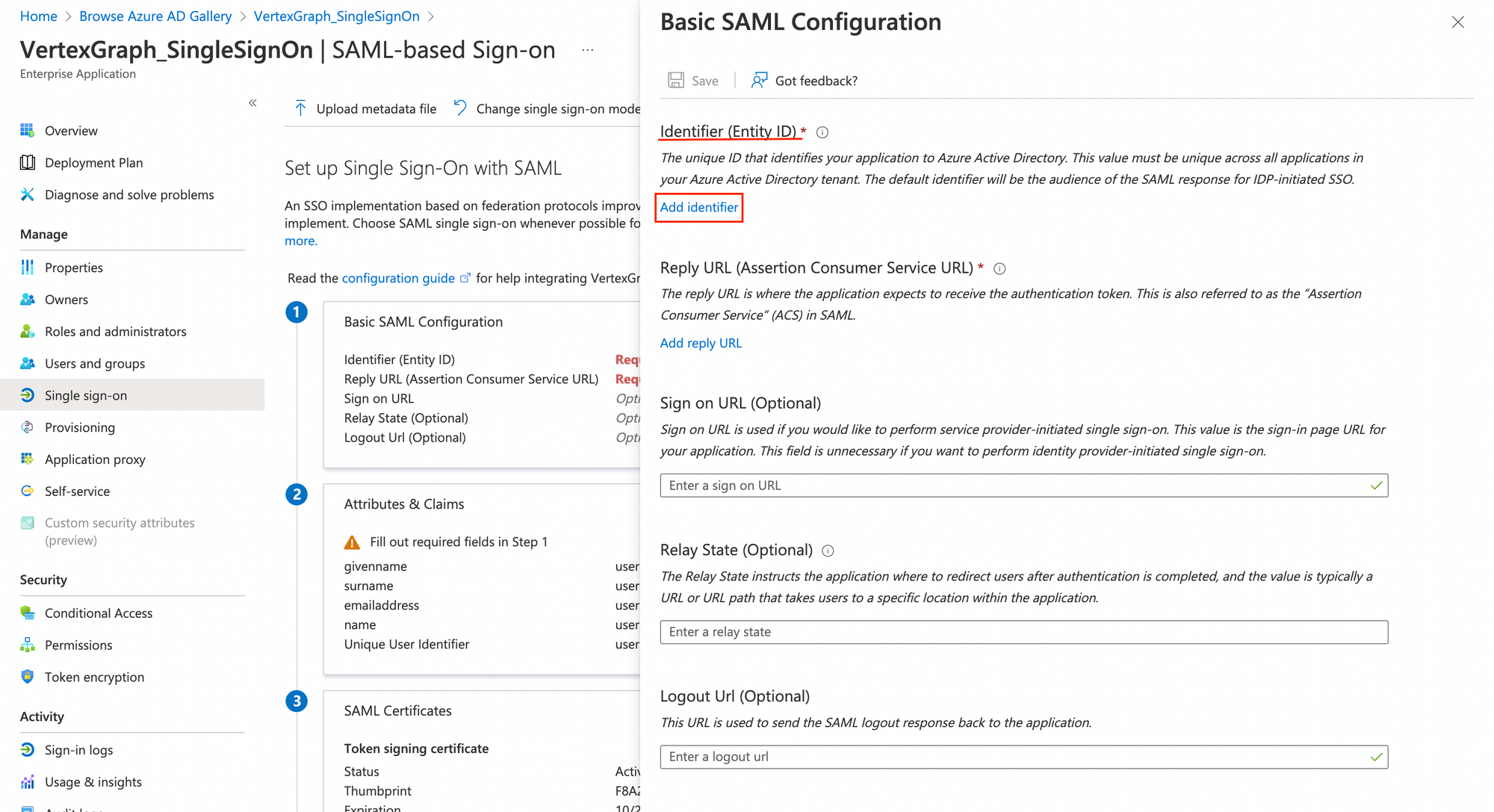

10. Click on “Add identifier” under “Identifier (Entity ID)”

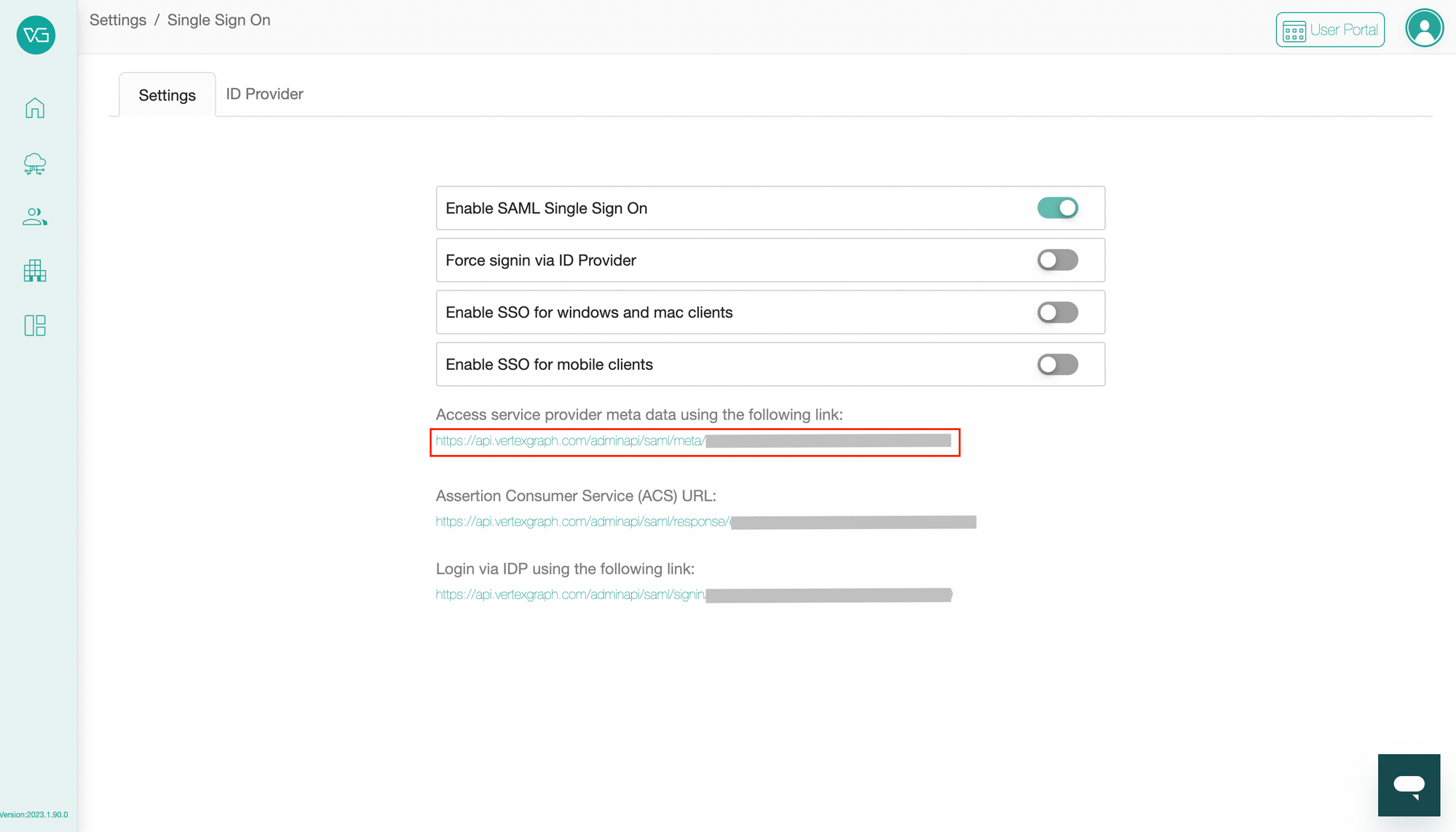

11. Go to the VertexGraph page and copy the link below “Access service provider metadata using the following link:”

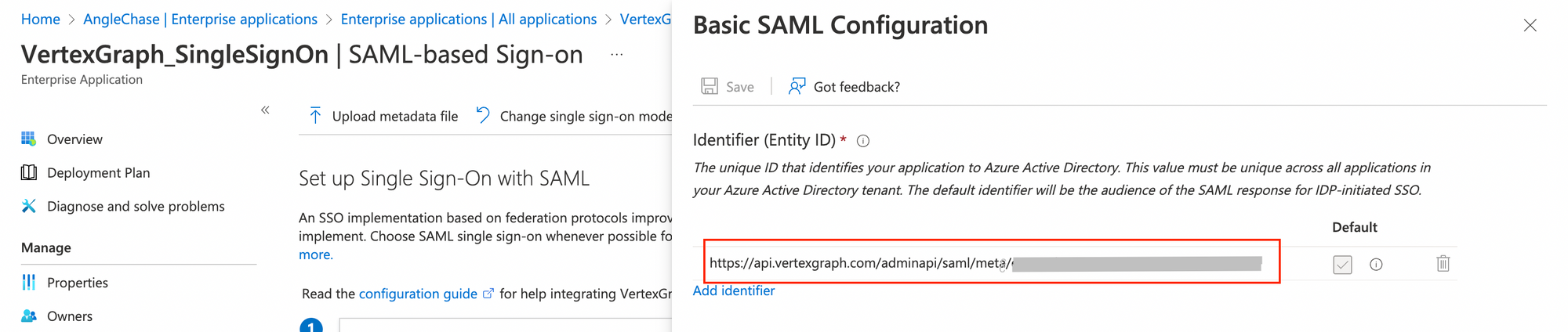

12. Paste the link into the “Identifier (Entity ID)” box in Azure
13. Go to the VertexGraph page and copy the link below “Assertion Consumer Service (ASC) URL:”
14. In Azure, click on “Add reply URL” under “Reply URL (Assertion Consumer Service URL)”

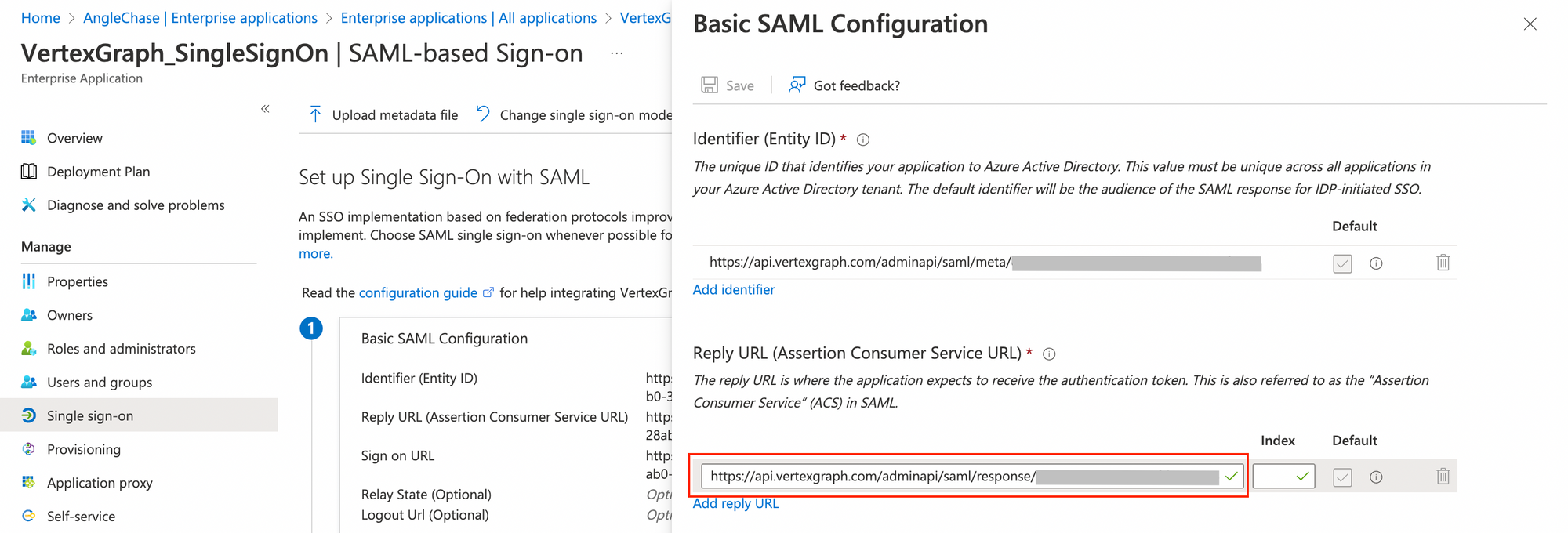

15. Paste the link copied from VertexGraph into the “Reply URL” box in Azure

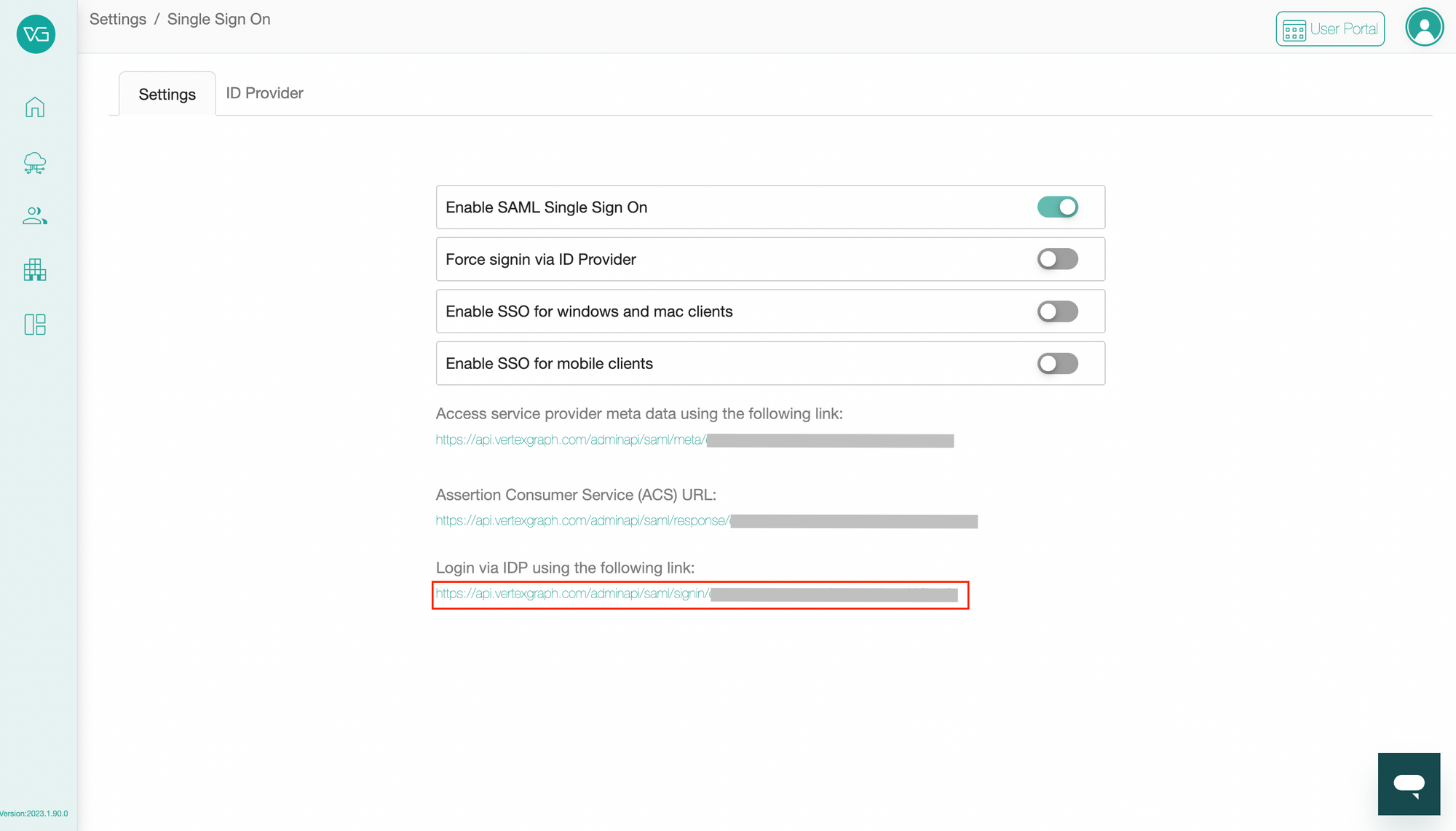

16. Go back to the VertexGraph admin console and copy the link under “Login via IDP using the following link”

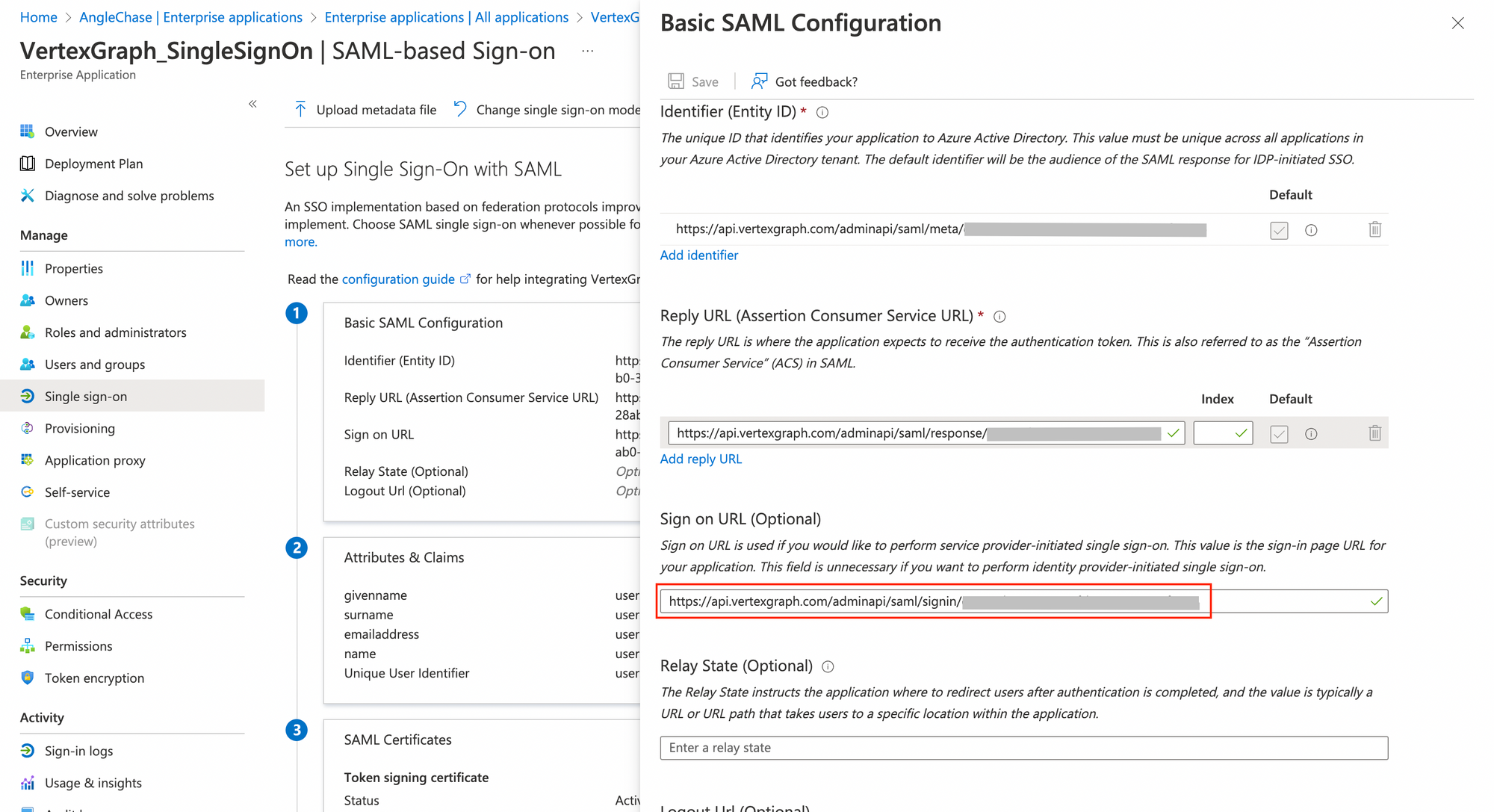

17. Paste the link in the “Sign on Url” box
18. Click on “Save” and close out of the opened panel
Set up Azure AD Single Sign-On in VertexGraph

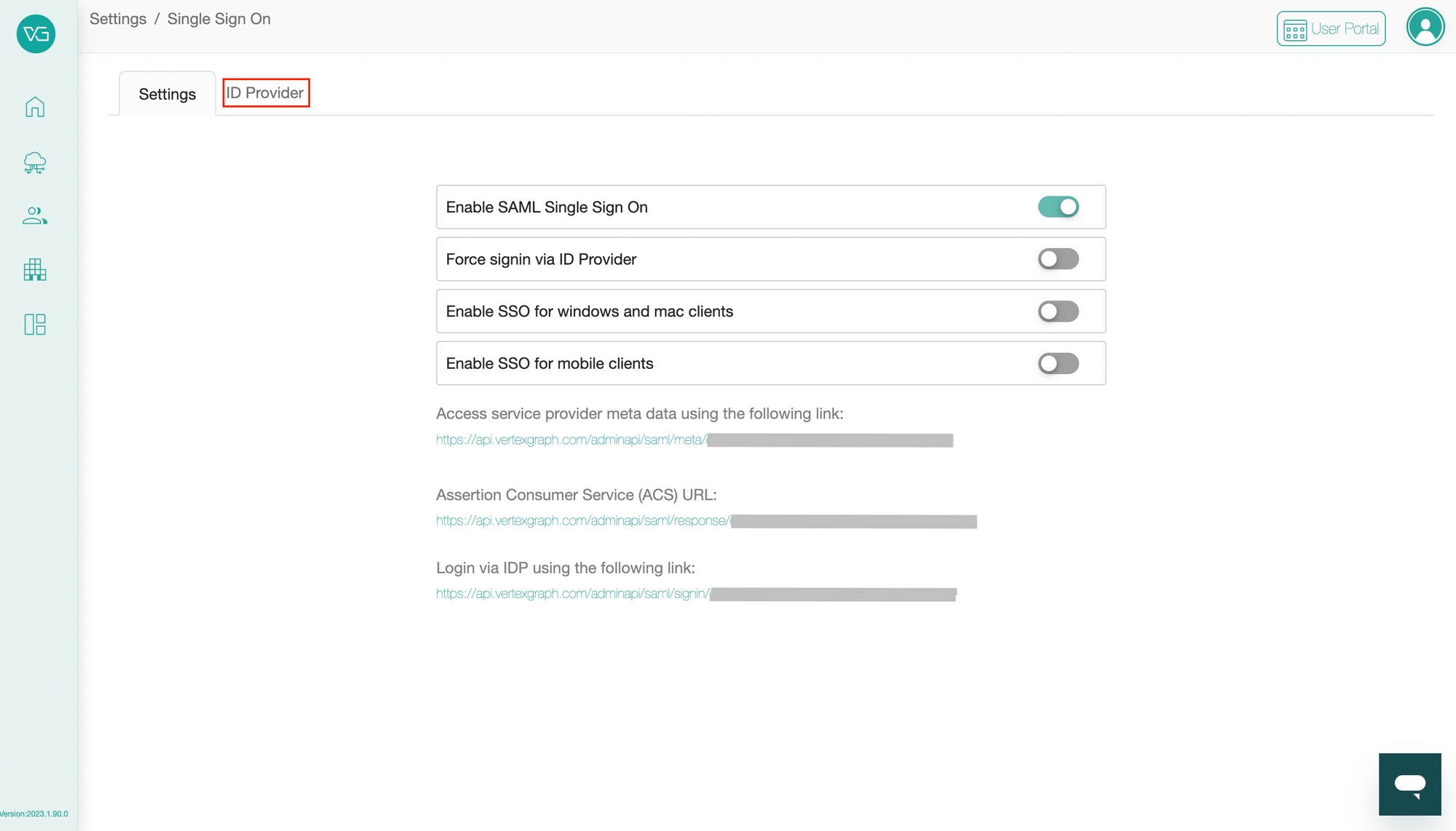

1. In VertexGraph, still in the single sign-on setting page, click on the "ID Provider" tab

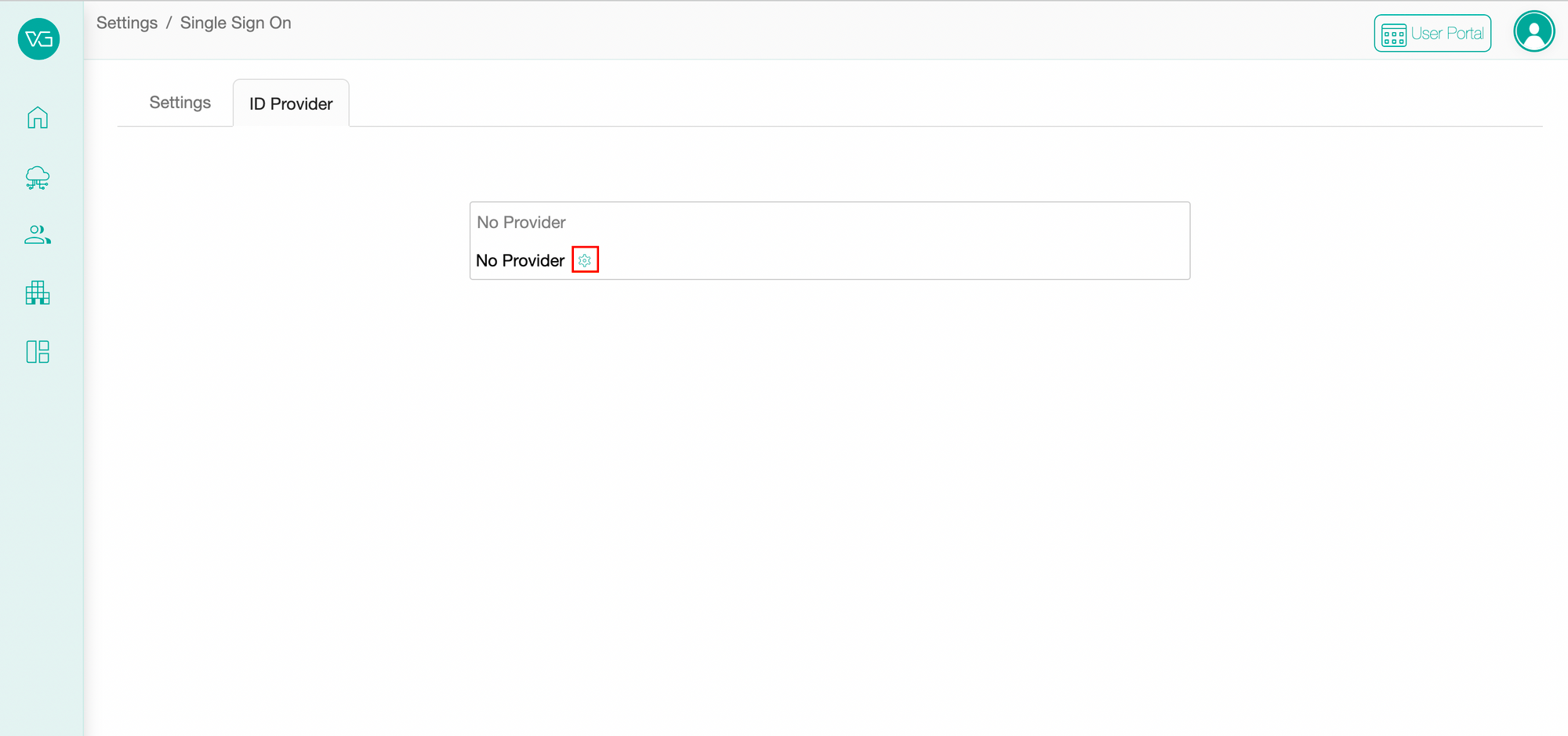

2. Click on the “Settings” icon in the box

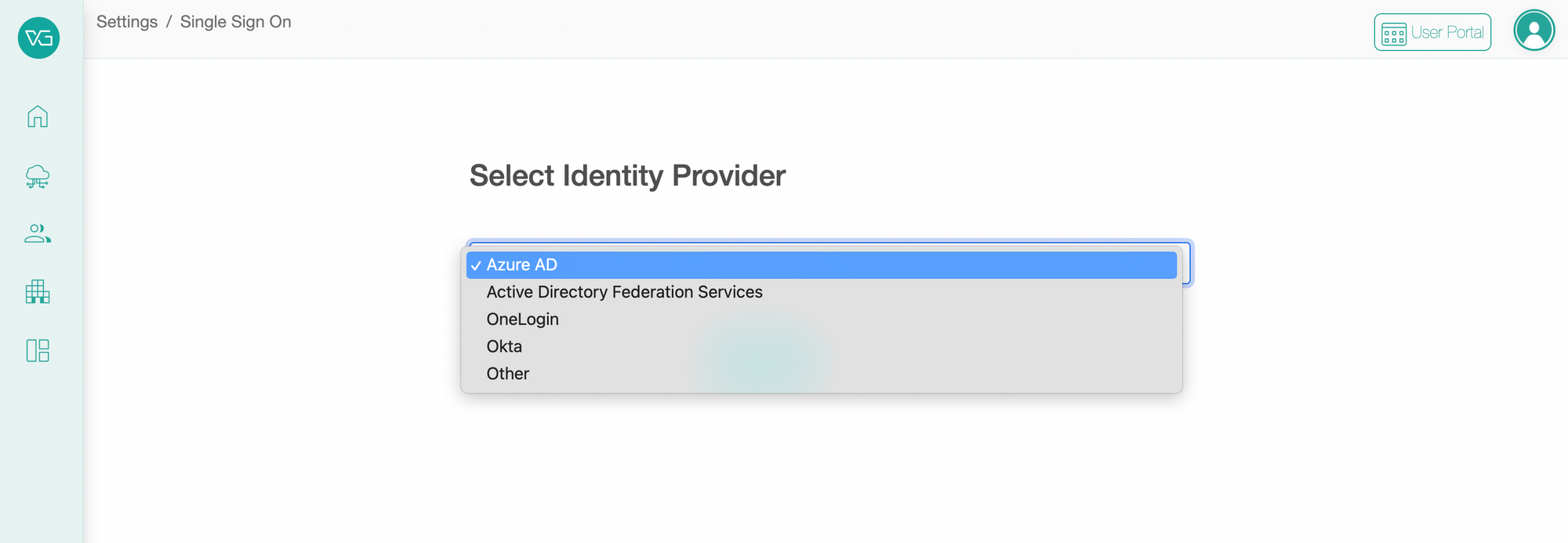

3. In the dropdown, select “Azure AD” and then click “Continue”

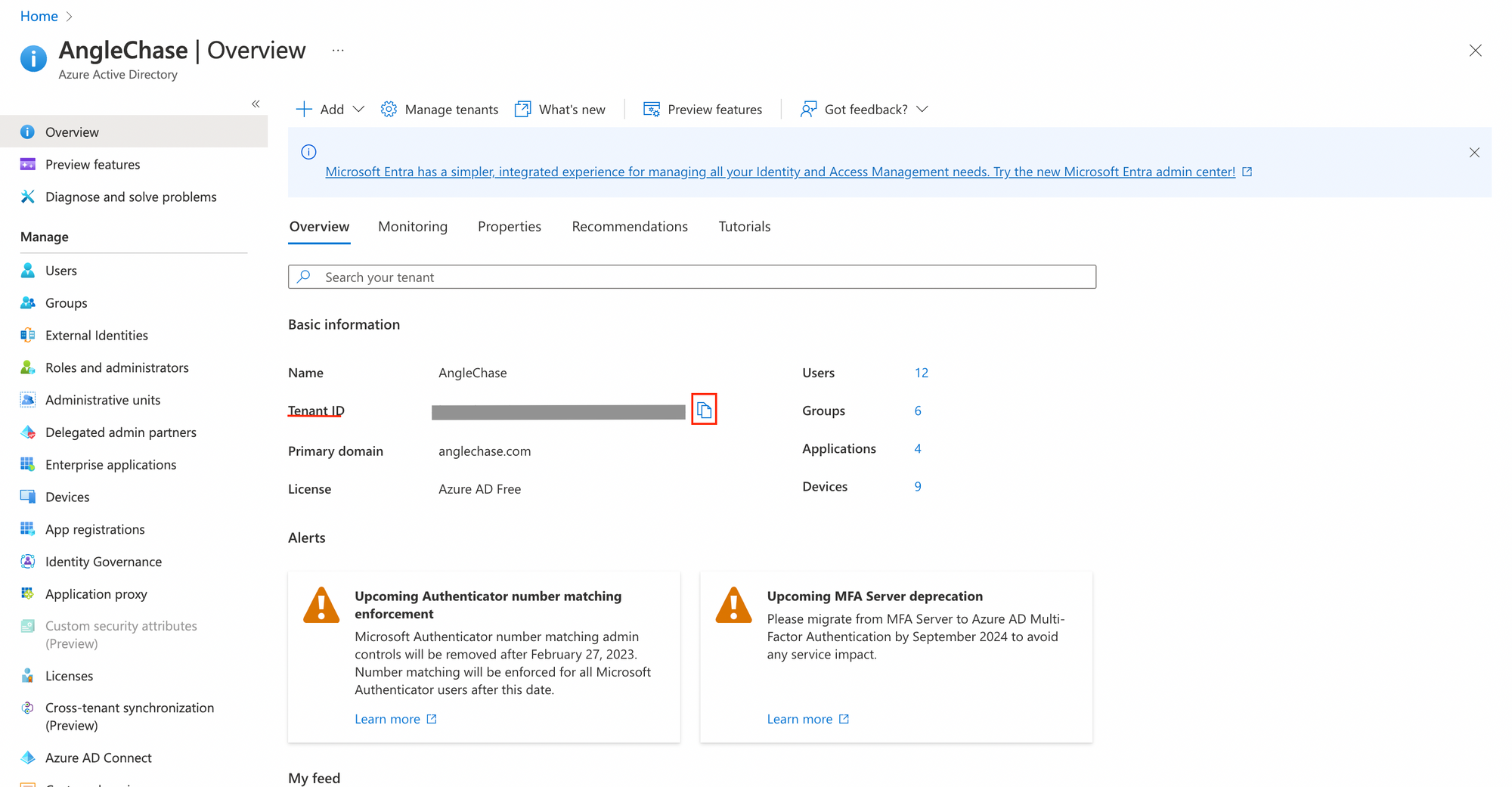

4. Go to Azure AD, and copy your tenant ID

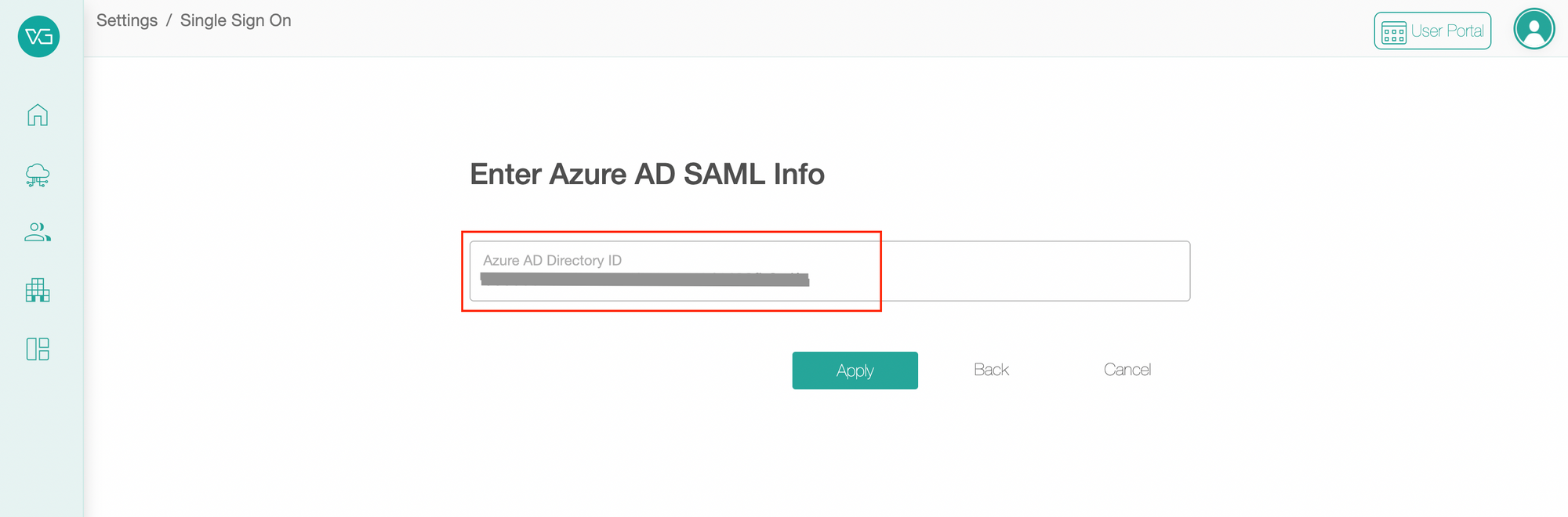

5. Paste it in the VertexGraph page and click “Apply”
Test the single sign-on with a native user

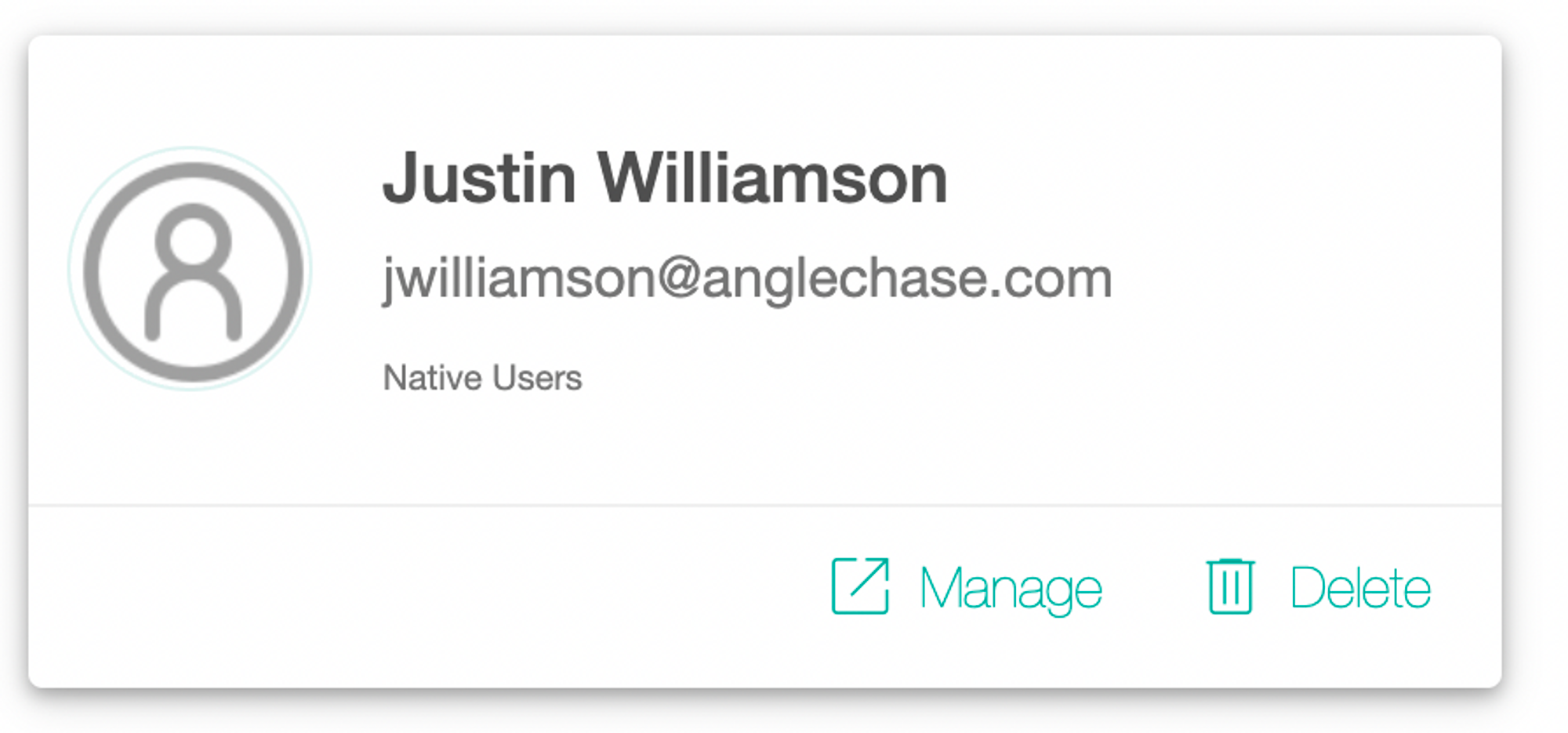

1. This organization has a native user with email jwilliamson@anglechase.com in the VertexGraph software. gmorton@anglechase.com also corresponds to Gerard in Azure AD.

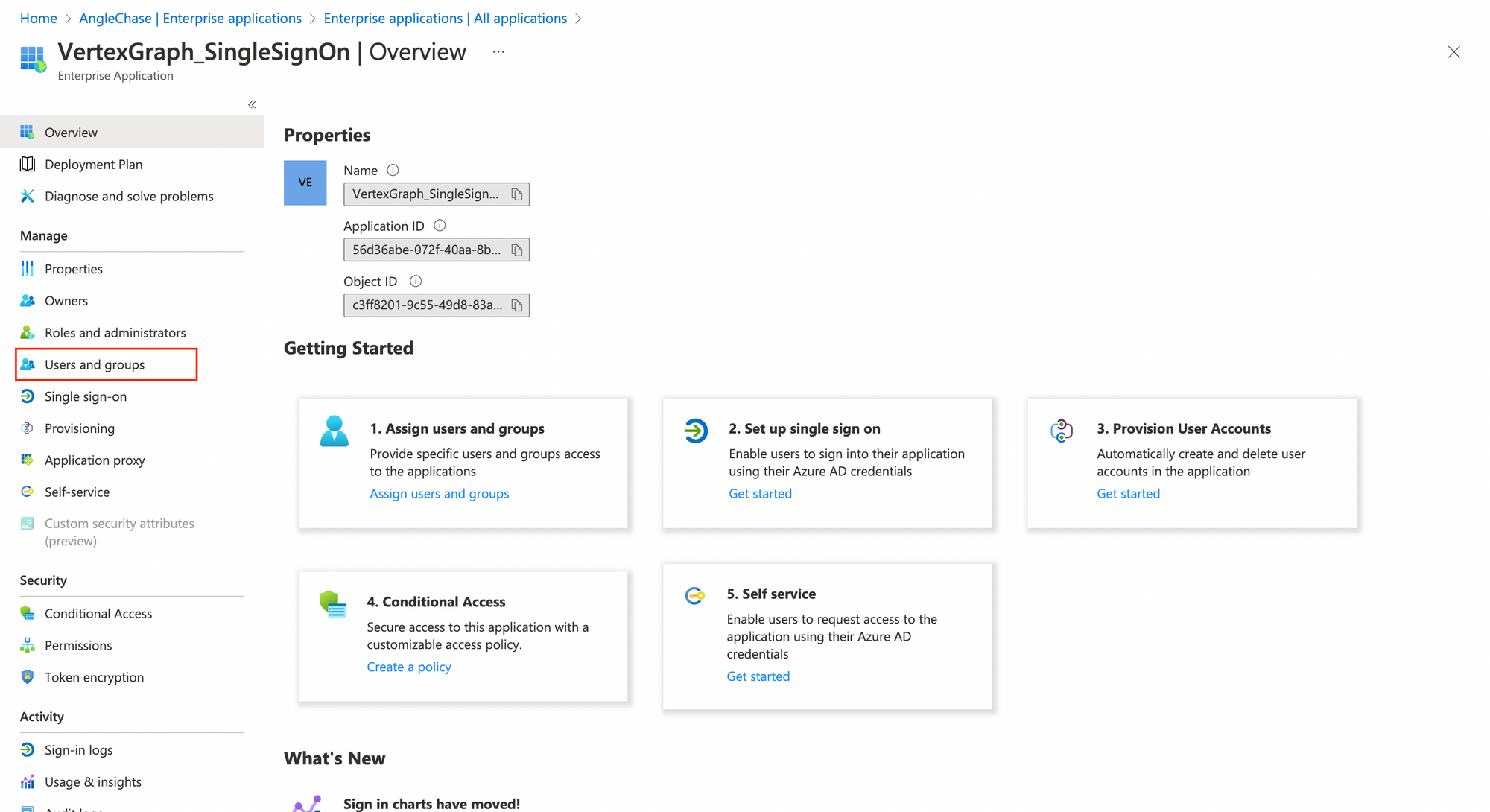

2. In the application we just added in Azure AD, click on “Users and groups”

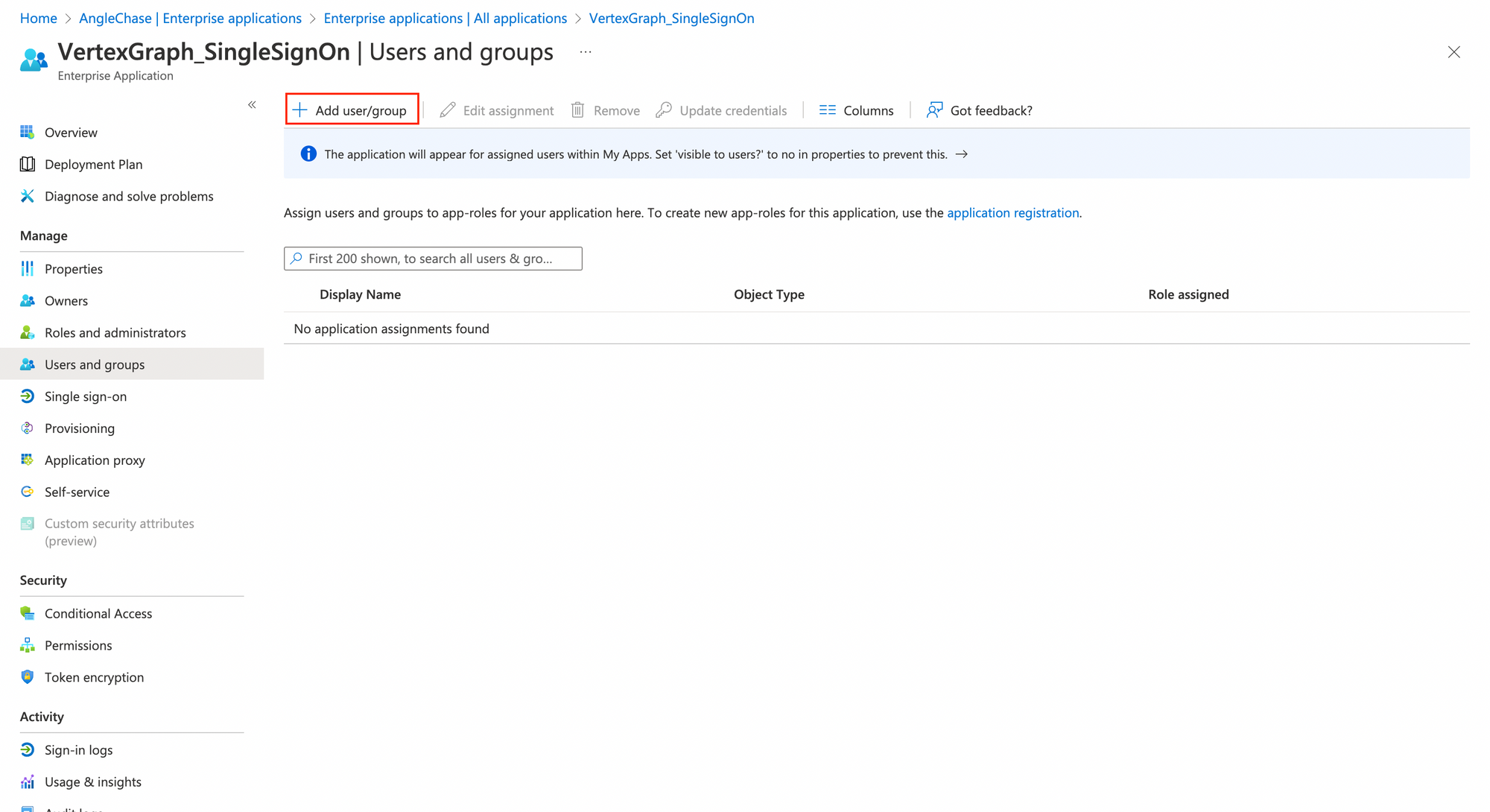

3. Click on “Add user/group”

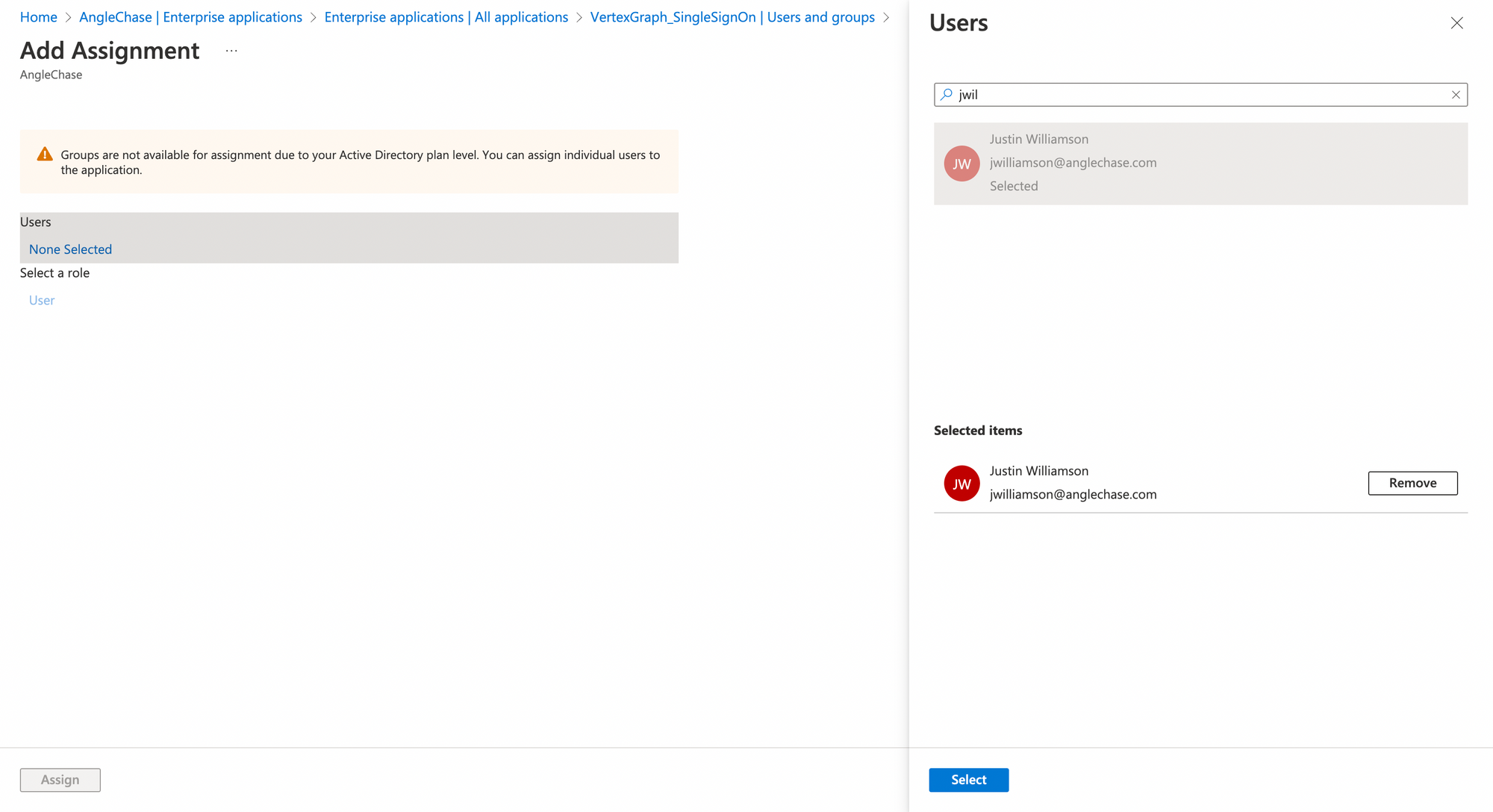

4. Add Justin to the app

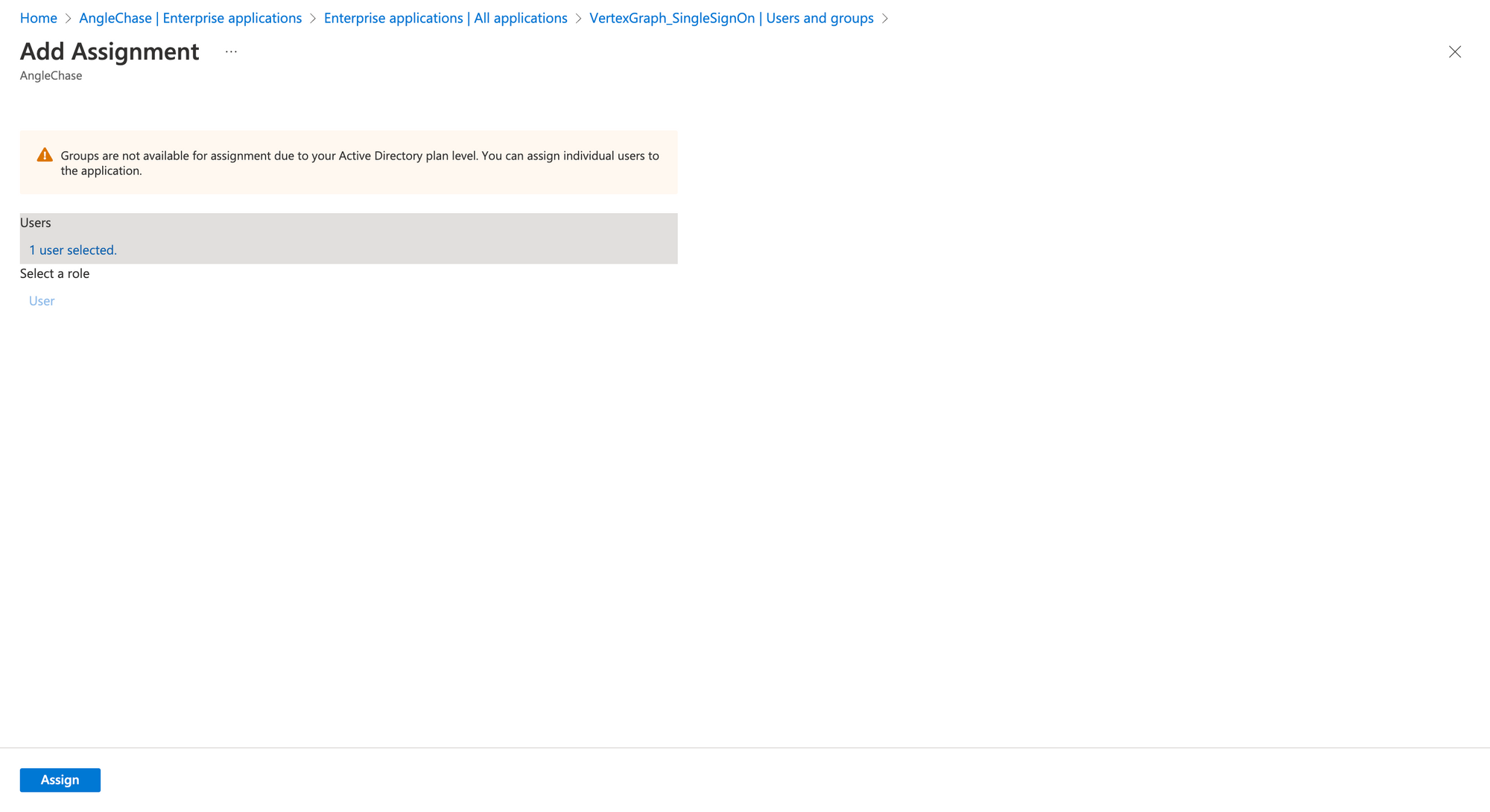

5. Click “Assign” at the bottom to finish adding the user

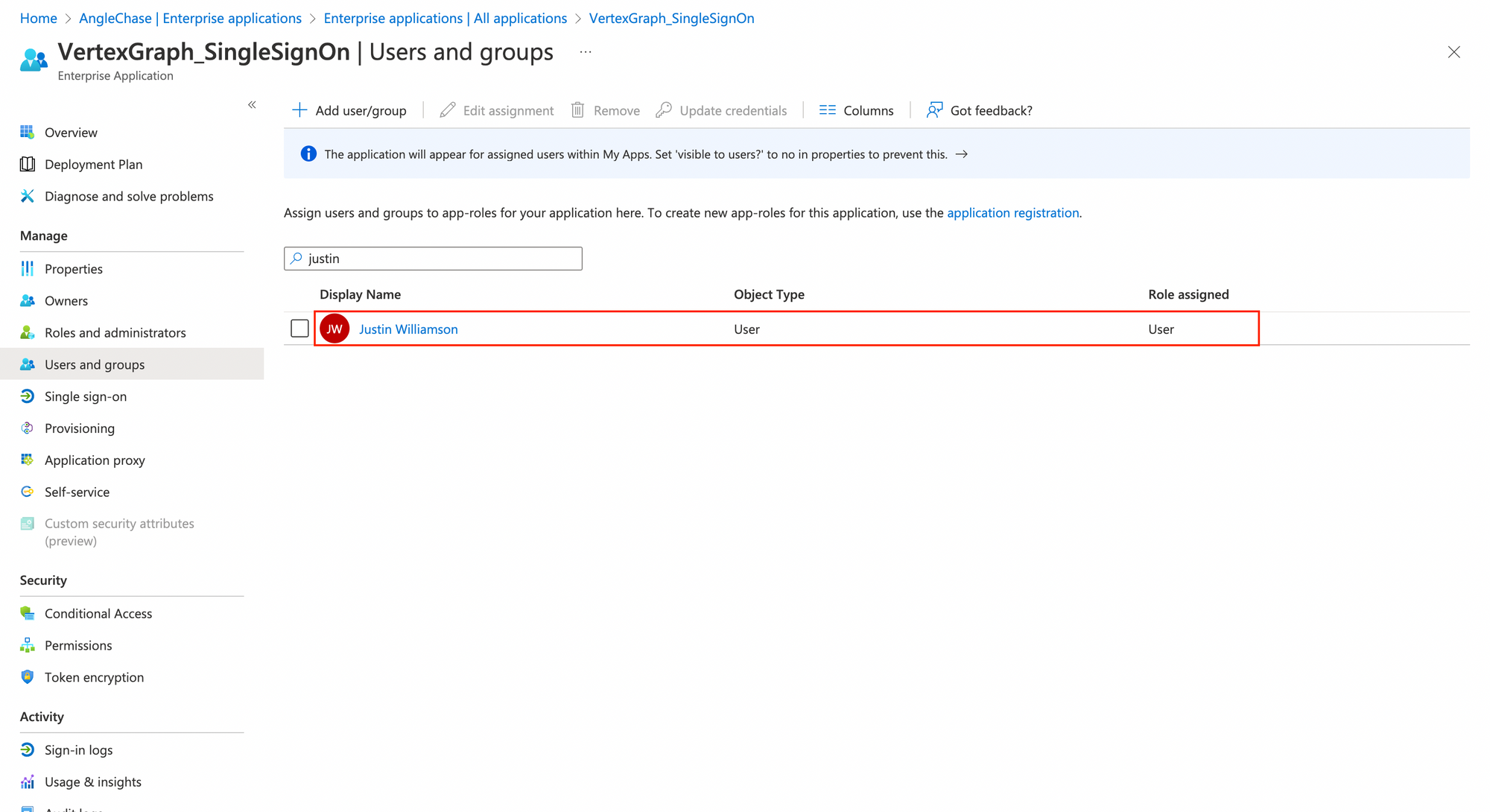

6. Justin is added to the application successfully

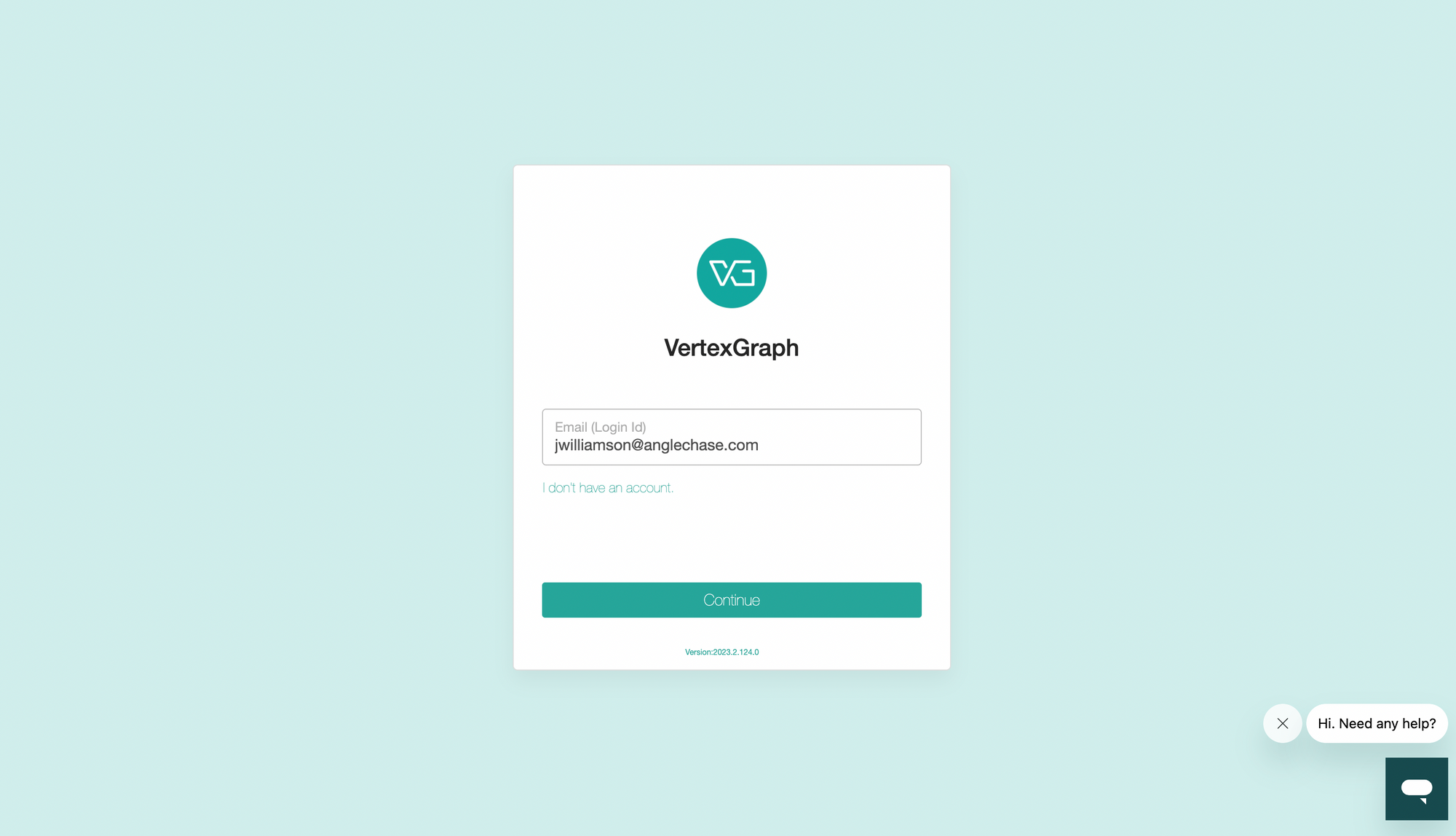

7. Now, suppose Justin goes to portal.vertexgraph.cloud, enter his email and click “Continue”

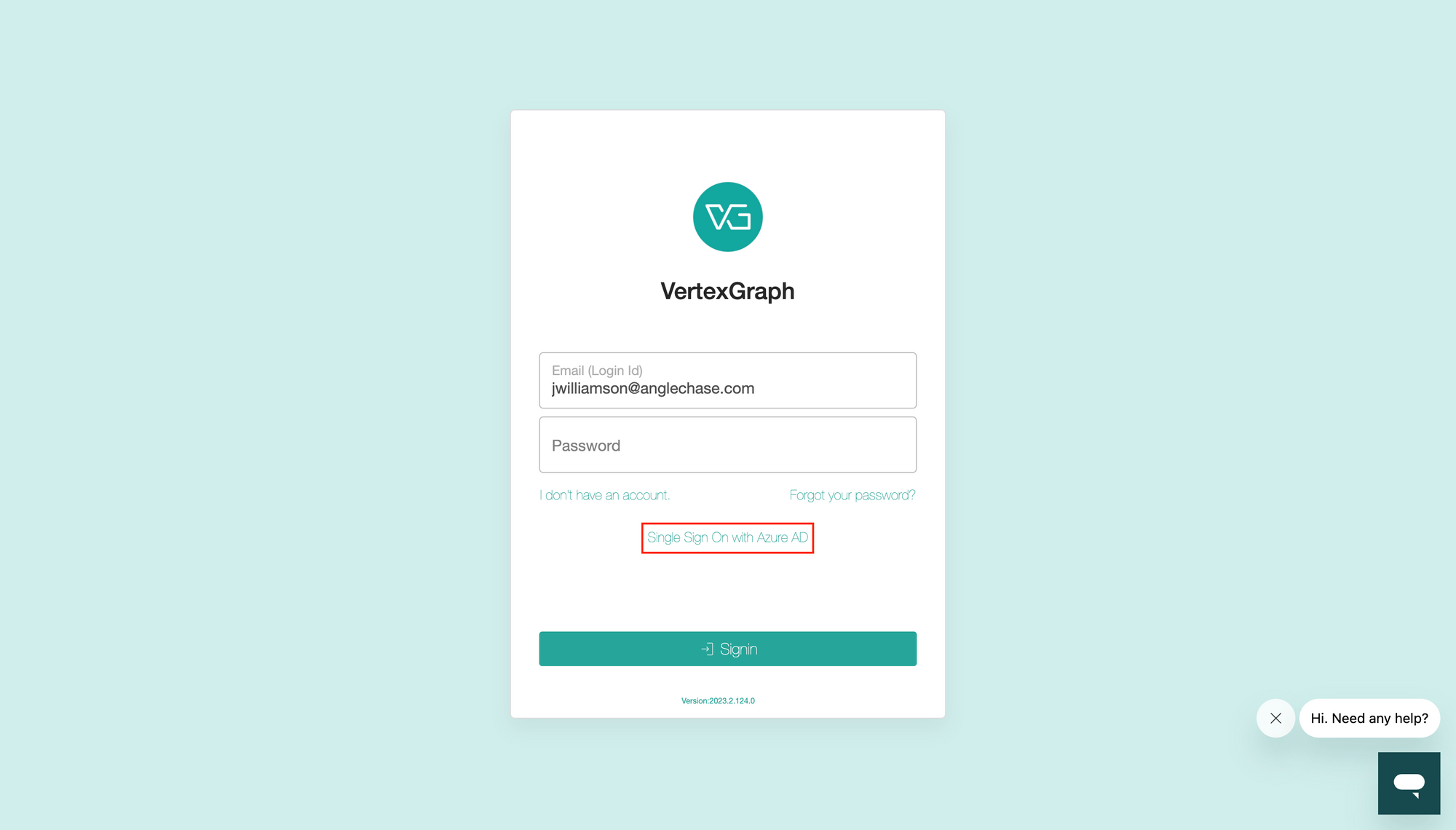

8. He will see an option “Single Sign On with Azure AD”
9. If he clicks on “Single Sign On with Azure AD”, he is taken to the Azure AD page to log in

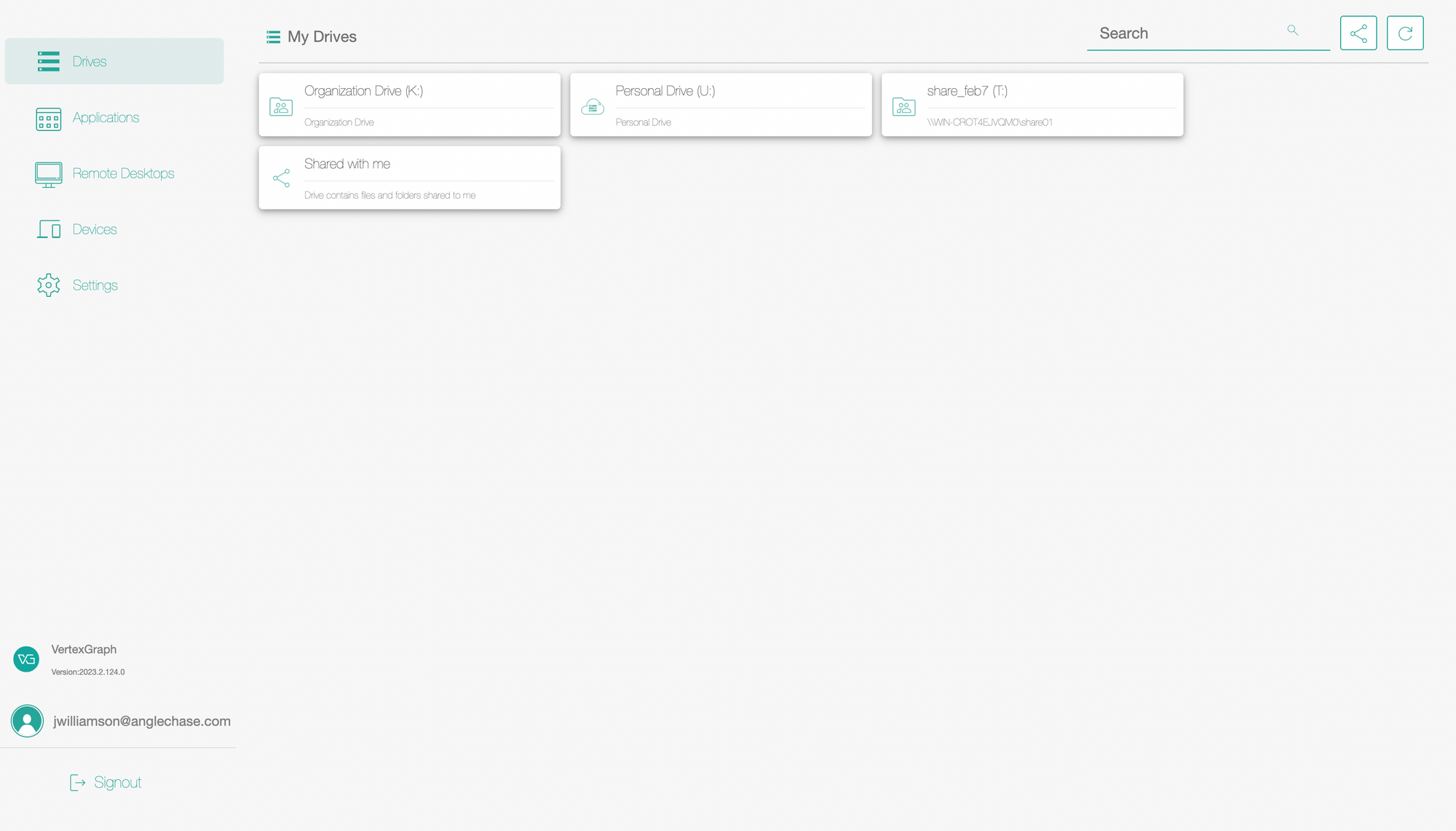

10. After signing in through Azure AD, he is taken to the user portal
